R454B Packaged Units

R454B Packaged Units

Our complete line of packaged systems include Packaged Air Conditioners, Packaged Gas Furnaces and Air Conditioners, Packaged Heat Pumps and Packaged Hybrid Heat. These self-contained systems are located outside of the home, mounted on the ground or the roof, and ducted into the home.

Just like individual furnaces, air conditioners and heat pumps, these package units carry SEER/SEER2, EER/EER2, AFUE and HSPF/HSPF2 ratings. The higher the rating, the more energy efficient the unit is. The Department of Energy’s (DOE) new minimum efficiency standards vary by region, so your choice of package units will depend on where you live.



 Click Here for more information on RUUD Package Units

The DOE’s regional breakdown by state is as follows:

  • North
    • 15.0 SEER/ 14.3 SEER2
    • 8.0 HSPF/6.7 HSPF2
    • 90% AFUE
  • Southeast
    • 14.0 SEER/ 13.4 SEER2
    • 8.0 HSPF/6.7 HSPF2
    • 80% AFUE
  • Southwest
    • 14.0 SEER/ 13.4 SEER2
    • 8.0 HSPF/6.7 HSPF2
    • 80% AFUE

Give Braswell's Air Conditioning & Heating Services A Call Today!

Call us now at (832) 425-8265.

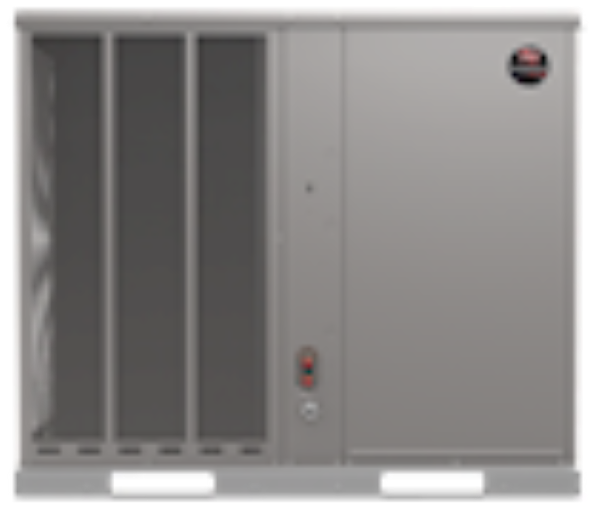

Air Conditioning Only Product Offering

RACA14-RACA15

RACA14, RACA15 (2-5 Ton)

View Brochure
Model Family: RACA14-RACA15
Efficiency SEER2: 14 SEER
Efficiency EER2: 11 EER
Energy Star Certified: No
Sound Level: Quiet operation
Blower Motor:
Refrigerant Type: R-410A
Compressor: Scroll Compressor
Factory Warranty Parts: Conditional Parts Warranty - 10 Years (1-Phase Residential - Registration Required)
Factory Warranty Compressor: Compressor - 10 Years (1-Phase Residential)
Manufacturer's Stated Benefits:
  • Louvered condenser compartment to protect the coil against yard hazards and/or weather extremes.
  • One-piece top with a drip lip to help keep water off of the unit sides.
  • Drawn supply and return air openings feature a one-inch tall flange to prevent water migration into the ductwork.
  • Supplemental electric heat strips up to 15 kW are available for periods of extreme cold temperatures
  • All units feature an internal trap on the condensate line eliminating the need for installing an on-site external trap.
  • Easily accessible control box.
  • Thermal expansion valve standard on all models for superior superheat control
RSPM

Classic Series RSPM

View Brochure
Model Family: RSPM
Efficiency SEER2: 14 SEER
Efficiency EER2: 12.4 EER
Energy Star Certified: ENERGY STAR®
Sound Level: Quiet operation
Blower Motor:
Refrigerant Type: R-410A
Compressor: Scroll Compressor
Factory Warranty Parts: Conditional Parts Warranty - 10 Years (1-Phase Residential - Registration Required)
Factory Warranty Compressor: Compressor Warranty - 10 Years (1-Phase Residential)
Manufacturer's Stated Benefits:
  • Durable Cabinet with Louvered Condenser Compartment.
  • Our mount helps protect the fan motor from the elements for longer life. Its design dependability helps reduce vibration and noi
  • Operational controls are
  • Exterior service fittings enable a serviceman to quickly determine unit operating conditions.
  • Rugged base rails are included for improved installation and handling.

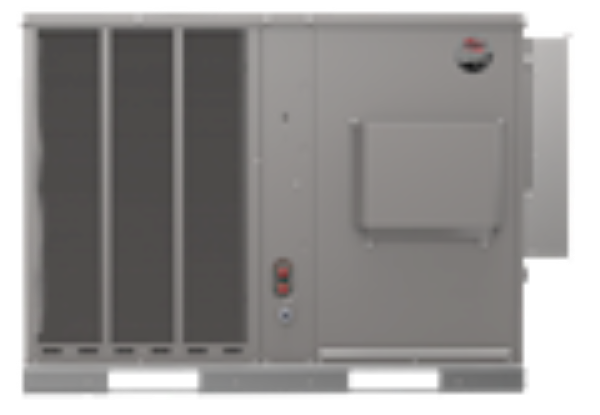

Gas Heating & Electric Cooling Product Offering

RGEA16

Ultra Series Package Gas/Electric Unit

View Brochure
Model Family: RGEA16
Efficiency SEER2: 16 SEER
Efficiency EER2:
Annual Fuel Utilization Efficiency: 81% AFUE
Energy Star Certified: No
Sound Level: Quiet operation
Refrigerant Type: R-410A
Gas Valve: Direct Spark Ignition
Blower Motor: variable speed motor
Compressor: Variable speed Scroll compressor
Factory Warranty Parts: Conditional Parts - 10 Years (Registration Required)
Factory Warranty Compressor: Compressor - 10 Years (1-Phase, Residential)
Heat Exchanger Warranty: Limited Lifetime Heat Exchanger Warranty
Manufacturer's Stated Benefits:
  • Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes
  • One-piece top with a deep flange to help keep water out of the unit.
  • Access panels have weep holes and channels to further help manage water run-off.
  • Supply and return air openings feature a one-inch tall flange to prevent water migration into the ductwork.
  • Easily accessible control box
  • Rugged baserail included for improved installation and handling
  • Complete factory charged, wired and run tested.
  • Molded compressor plugs.
RGEA 15

Achiever Series: Package Gas/Electric (2-5 Ton)

View Brochure
Model Family: RGEA 15
Efficiency SEER2: 15 SEER
Efficiency EER2: 11 EER
Annual Fuel Utilization Efficiency: 81% AFUE
Energy Star Certified: No
Sound Level: Quiet operation
Refrigerant Type: R-410A
Gas Valve:
Blower Motor:
Compressor: UltraTech™ Scroll 2-Stage compressors with Comfort Alert™ diagnostics
Factory Warranty Parts: Conditional Parts Warranty - 10 Years (1-Phase, Residential, Registration Required)
Factory Warranty Compressor: Compressor - 10 Years (1-Phase, Residential)
Heat Exchanger Warranty: 10 Year Limited Warranty
Manufacturer's Stated Benefits:
  • Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes.
  • One-piece top with a deep flange to help keep water out of the unit.
  • Access panels have weep holes and channels to further help manage water run-off.
  • Easily accessible blower section complete with slide-out blower.
  • All units feature an internal trap on the condensate line eliminating the need for installing an on-site external trap.
  • Easily accessible control box.

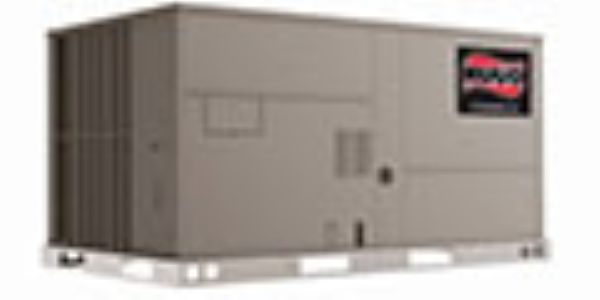

Heat Pump Product Offering

RQRM-RQPM

Packaged Dedicated Horizontal Heat Pump

View Brochure
Model Family: RQRM-RQPM
Efficiency SEER2: 14-16 SEER
Efficiency EER2:
Efficiency HSPF2:
Energy Star Certified: Yes
Sound Level: Quiet operation
Refrigerant Type: R-410A
Blower Motor: Matched Blower/Evaporator Coil Unit.
Compressor: Stage Scroll Compressor
Factory Warranty Parts: Conditional Parts - 10 Years (Registration Required)
Factory Warranty Compressor: 10 Year Limited Compressor Warranty
Manufacturer's Stated Benefits:
  • Durable Cabinet with Louvered Condenser Compartment.
  • Our mount helps protect the fan motor from the elements for longer life.
  • Operational controls are up front for quick installation and easy service diagnostics.
  • Exterior service fittings enable a serviceman to quickly determine unit operating conditions.
RQPL

Achiever Series Package Heat Pump
Model Family: RQPL
Efficiency SEER2: Up to 14 SEER
Efficiency EER2:
Efficiency HSPF2:
Energy Star Certified: No
Sound Level: Quiet operation
Refrigerant Type: R-410A
Blower Motor:
Compressor: Scroll Compressor
Factory Warranty Parts: Conditional Parts - 10 Years (Registration Required)
Factory Warranty Compressor: Compressor - 10 Years (1-Phase, Residential)
Manufacturer's Stated Benefits:
  • Durable Cabinet with Louvered Condenser Compartment.
  • Our mount helps protect the fan motor from the elements for longer life.
  • Operational controls are up front for quick installation and easy service diagnostics.
  • Exterior service fittings enable a serviceman to quickly determine unit operating conditions.
  • All units feature an internal trap on the condensate line eliminating the need for installing an on-site external trap.
  • Filter drier standard on all models
  • Rugged base rails included for improved installation and handling.

Dual Fuel / Hybrid Heating Product Offering

RQPW

Achiever Series: Package Duel Fuel

View Brochure
Model Family: RQPW
Efficiency SEER2: 14 SEER
Efficiency EER2:
Annual Fuel Utilization Efficiency: 80% AFUE
Efficiency HSPF2:
Energy Star Certified: No
Sound Level: Quiet Operation
Refrigerant Type: R410-A
Blower Motor: Matched Blower/Evaporator Coil Unit
Compressor: Scroll Compressor
Factory Warranty Parts: Limited Parts - 5 Years(Residential)
Factory Warranty Compressor: Limited Compressor - 10 Years (Residential)
Heat Exchanger Warranty: Stainless Steel Heat Exchanger - Limited Lifetime (1 Phase, Residential Application)
Manufacturer's Stated Benefits:
  • Our cabinets have a painted finish that protects them from the harshest weather extremes
  • Our new Package Dual Fuel Units feature a tubular stainless steel heat exchanger design.
  • Exterior service fittings enable a serviceman to quickly determine unit operating conditions
